HCIS Compliant A-1 ALCAZAR ANTI-VEHICLE ROPE BARRIER - ASTM F2656 M50 P1

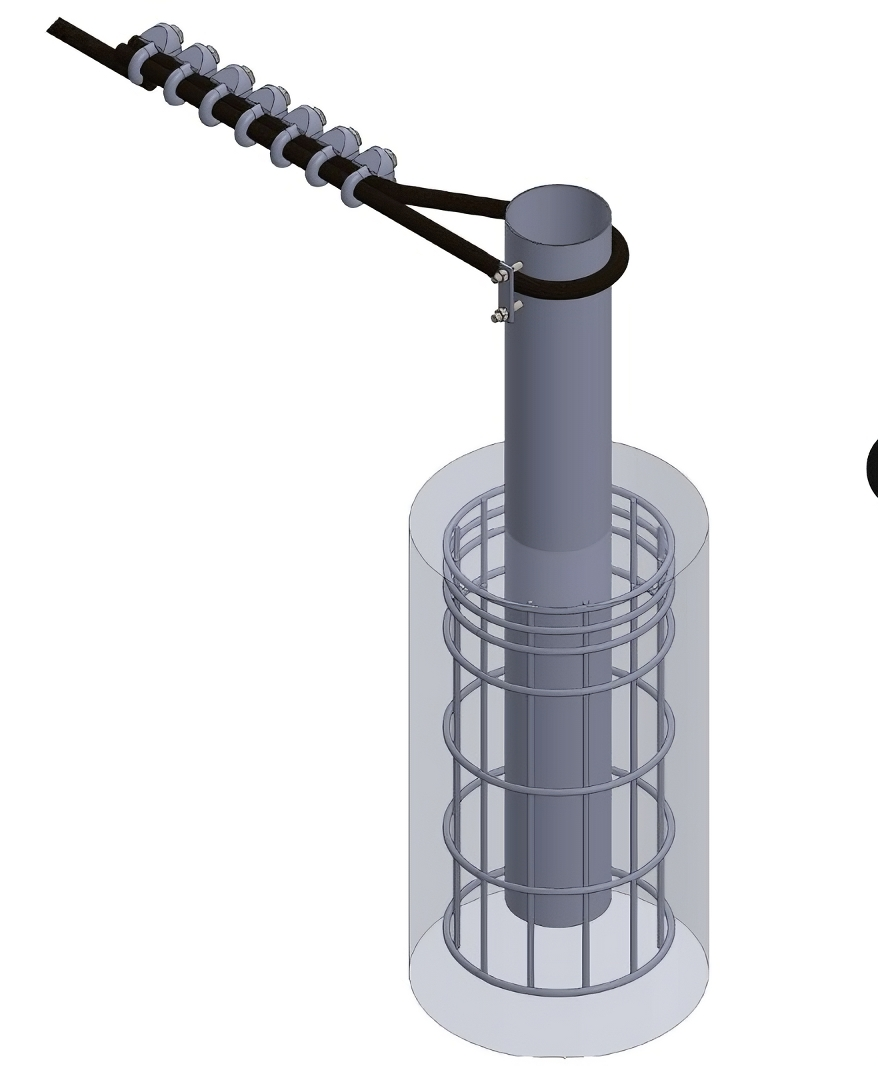

SINGLE-ROPE DESIGN

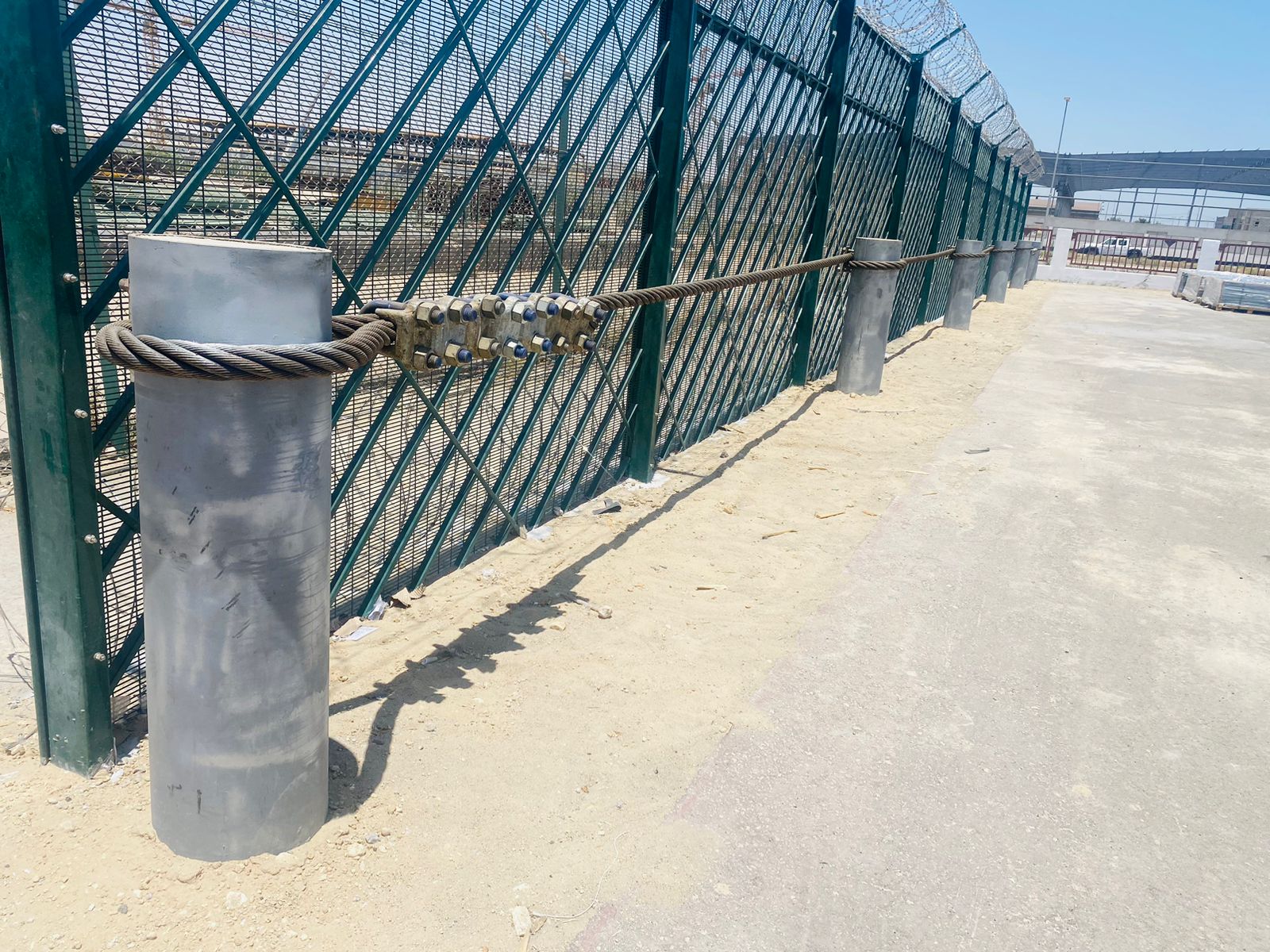

A1's Single Rope Design not only sets it apart but also simplifies installation, reducing complexity and enhancing system performance. Our method of looping and clamping the cable around each post ensures zero sagging and minimizes tension, unlike other systems with prolonged tension over longer distances. Our robust cable evenly distributes impact load, with clamping every six meters for stability and sag resistance.
TERMINATION EVERY 30 METERS
The barrier is terminated every 30 meters, ensuring a consistent and controlled installation process. Within these 30 meters, the horizontal impact load is evenly distributed among all the posts every 6 meters.This stands in contrast to other systems where the posts between them merely serve as guides and lack load-bearing capabilities. In our system, the load is uniformly distributed across each pole, and due to the limited 30-meter length, there is minimal tension. This design eliminates the need for various pole types or additional support poles. The termination at every 30 meters also simplifies maintenance in case of accidents, as only the affected meter needs replacement. This stands in contrast to systems from other manufacturers, where the entire length may require extensive reworking. This feature proves to be a significant advantage for end-users.
SHALLOW FOUNDATION

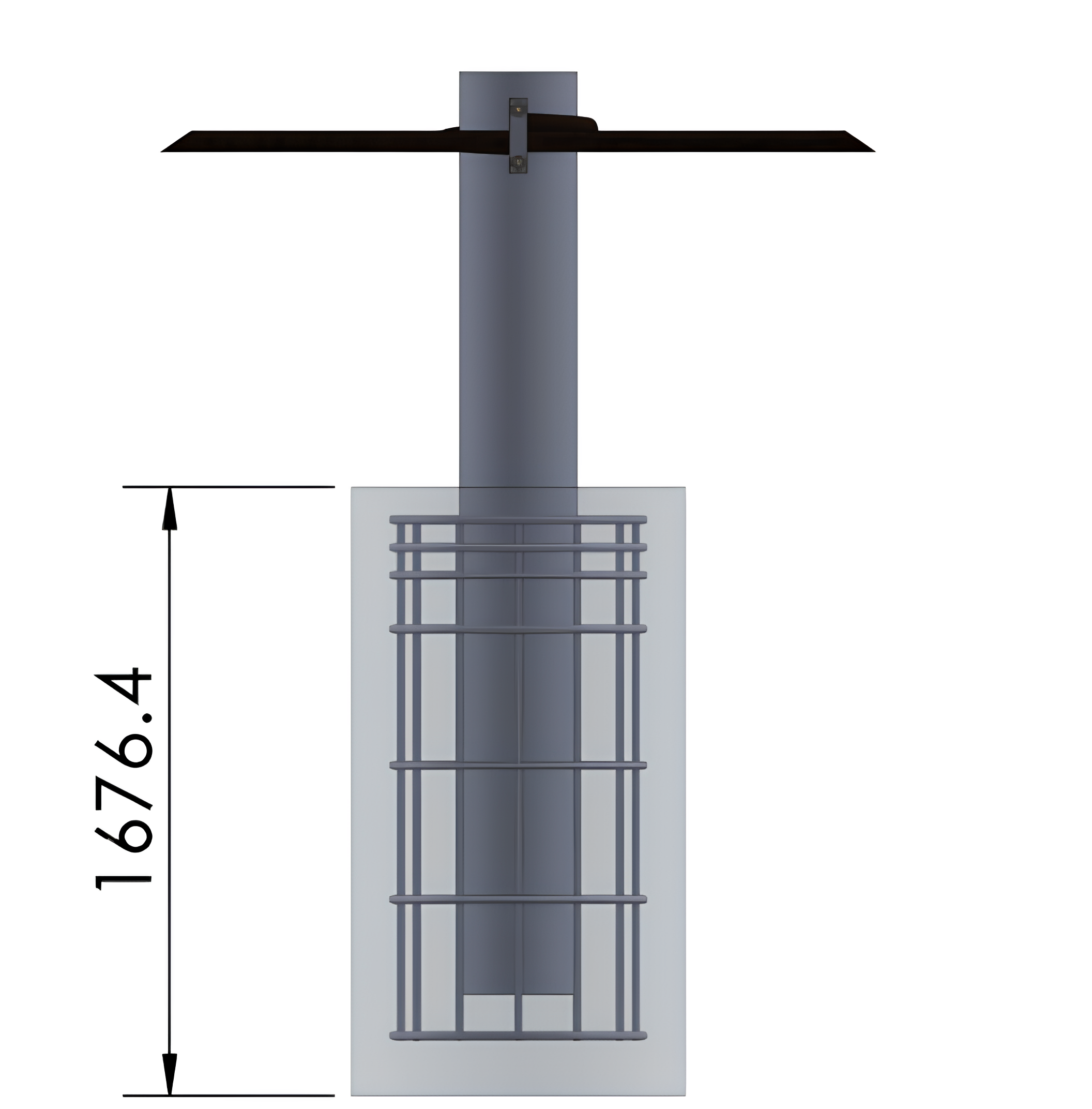

Successfully underwent testing with a foundation depth of 1.65 meters, marking the shallowest in the industry. All the posts share a uniform type, necessitating an identical foundation for each. This standardized foundation requirement eliminates the need to adapt to various foundation types. Instead, one can consistently create and utilize the same foundation, simplifying the installation process by placing the posts in it and then laying the cables. With a shallow depth of only 1.67 meters, it can also be seamlessly combined with APF (Anti Personnel Fence) systems.
LIMITED COMPONENTS
Comprising only four key elements - post, cable, cable clamp, and clamp plate with nuts & bolts - this streamlined design simplifies various aspects such as shipping, on-site inventory management, and transportation.

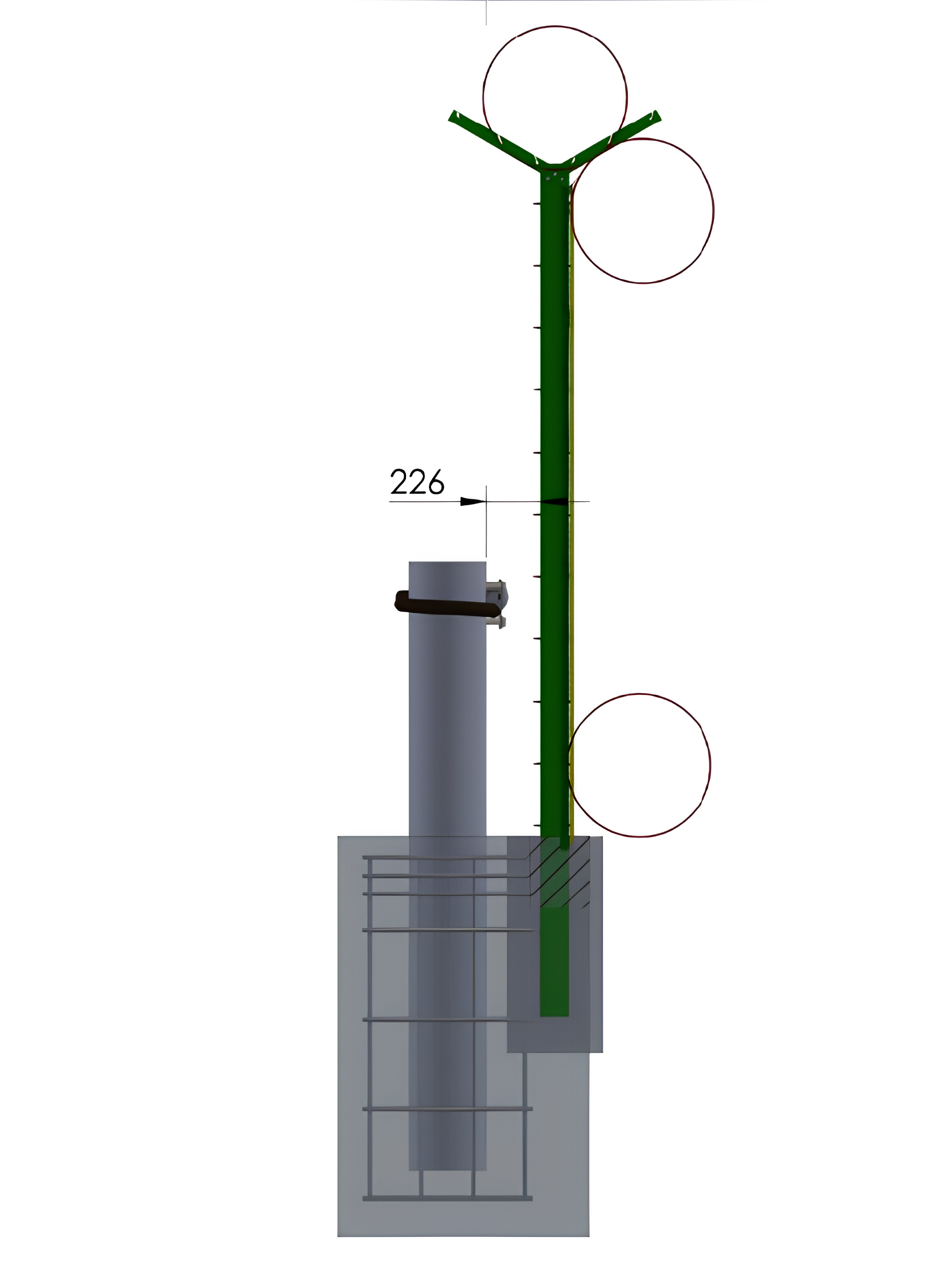

UNITED FOUNDATION FOR AVB and APF

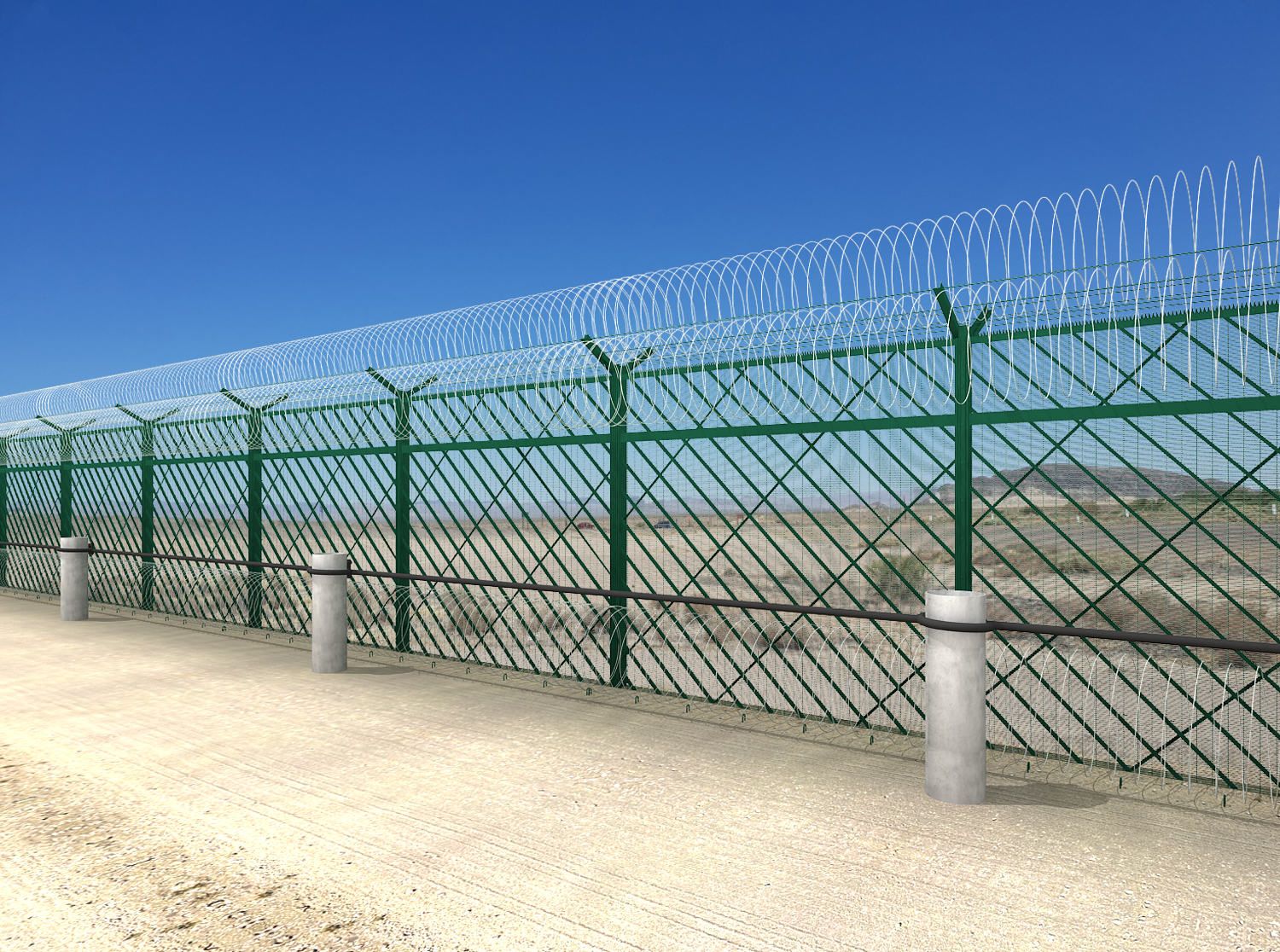

The distance between our Anti-Vehicle Barrier (AVB) and A-1 Akat® - categorized as Class 1 fence, can be minimized to as little as 226 mm, resulting in space savings along the perimeter. This innovative approach enables the implementation of a shared foundation between the fence and AVB posts every 6 meters, ensuring a trouble-free installation experience on-site.

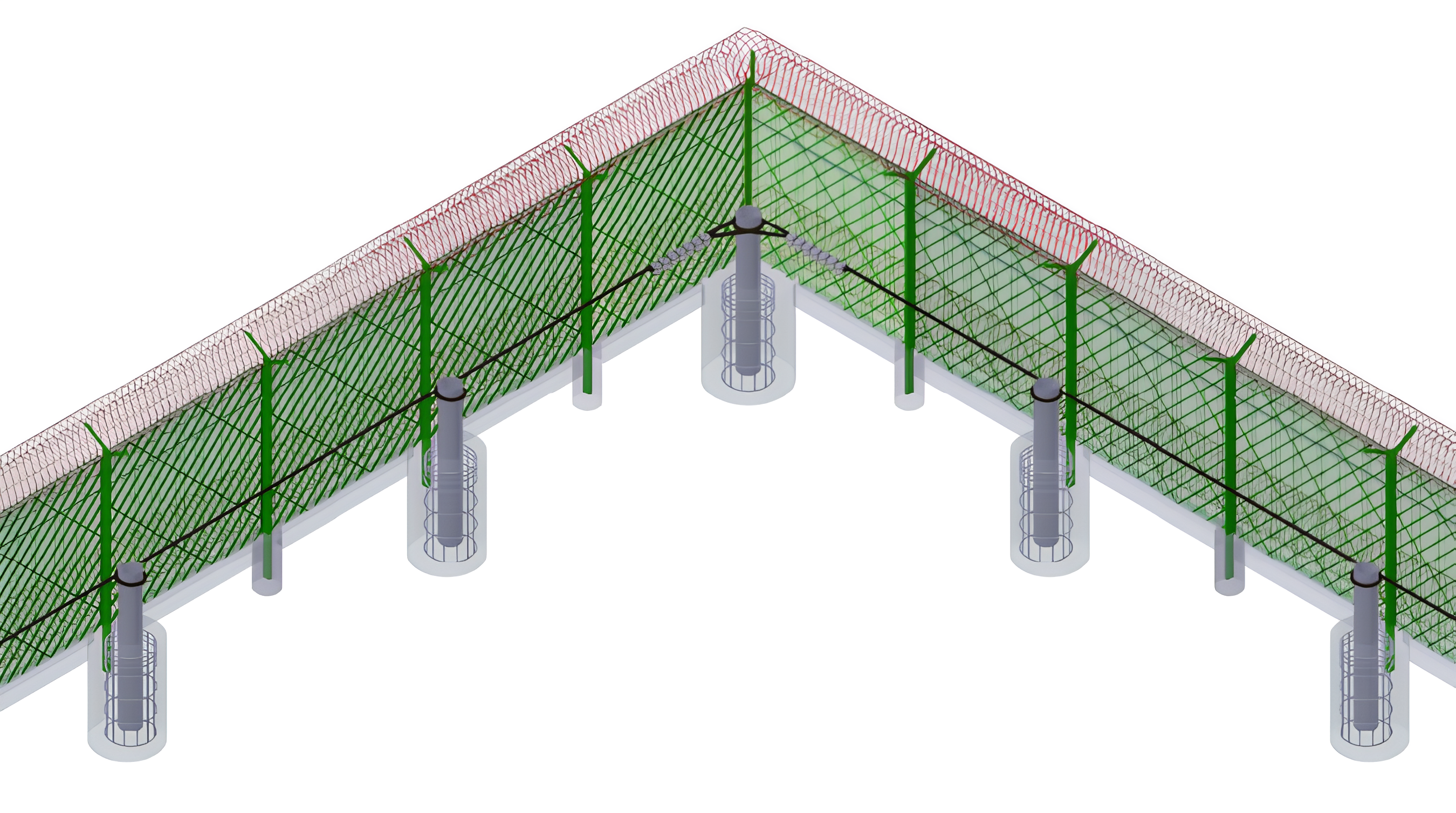

FLEXIBLE DEPLOYMENT
This termination strategy allows for well-planned corners without incurring additional costs. The rope-type design provides flexibility in installation, making it advantageous for sites with numerous corners and steps as no customization is required on site.
QUICK & EASY INSTALLATION
The Anti-Vehicle Barrier (AVB) combines robust security features with a user-friendly installation process. Its single rope design, termination at every 30 meters, and uniform post type simplify installation. With a shallow 1.65-meter foundation depth, the AVB allows for quick and space-saving deployment. The shared foundation with the Anti-Personnel Fence (APF) at 6-meter intervals allows for efficient and cost-effective deployment.. The AVB's four-component structure ensures simplicity in shipping and management. Its design flexibility accommodates corners seamlessly. In essence, the AVB prioritizes both security and a streamlined installation experience.
Features
What makes our Anti-Vehicle Rope Barrier better than the others?
Our Anti-Vehicle Barrier surpasses others with a successful M50-P1 crash rating, ensuring top-tier impact resistance.
The unique single rope design, featuring a thick rope, sets us apart as the sole company to pass the crash test with such simplicity and efficiency.
Termination at every 30 meter guarantees consistent and controlled installation, distributing loads evenly across all posts, a feature absent in many other systems.
The barrier's common foundation requirement for all posts simplifies installation, offering a standardized approach to deployment.
With the shallowest foundation depth in the industry at 1.65 meters, our barrier saves space and seamlessly integrates with Anti-Personnel Fence (APF) systems.
The system comprises only four major components, including post, cable, cable clamp, and clamp plate with nuts & bolts, ensuring uncomplicated shipping, inventory management, and transportation.
A clamping system every six meters on every post eliminates sagging and minimizes tension, contributing to long-term durability and reduced maintenance.
The robust wire/rope design, combined with termination every 30 meters, facilitates easy replacements and diminishes the need for extensive rework in case of accidents.
The barrier's longevity is guaranteed by post-fabrication hot-dip galvanization, preserving both its structural integrity and aesthetic appeal throughout the years.
In summary, our Anti-Vehicle Barrier excels in crash resistance, simplicity of design, standardized installation, and long-term durability, making it the superior choice in the market.
A1 Alcazar Anti-Vehicle Rope Barrier Specifications
PARAMETERS |
SPECIFICATIONS |
Foundation Depth |
1676 mm |
Foundation Width |
915 mm |
Post Spacing |
6000 mm |
Post Height | 1143 mm (above ground) |
Post Dia | 323.8 mm (outer dia) |
Wire Rope | 57.15 mm (nominal dia) |
Wire Rope Weight | 14000 Kg/Km (theoretical) |
CRASH RATING |
ASTM F2656 M50 P1 |
Vehicle Weight |
6800 kg |
Vehicle Speed |
50 kmph |
Penetration (Static & Dynamic) |
less than 1 meter |
Advantages of A1 Alcazar Anti-vehicle Rope Barrier
Experience unparalleled protection with the A-1 Alcazar Anti-Vehicle Rope Barrier – a pinnacle of security against hostile vehicles. Manufactured by a leading Vehicle barriers manufacturer and Road blockers supplier, this barrier stands as a reliable shield capable of halting a 6.8-ton oncoming vehicle traveling at 50 mph within just 1 meter, meeting HCIS compliance and ASTM F-2656 M50 P1 crash rating standards. When it comes to safeguarding your assets, our auto barrier gates, including the anti-vehicle barrier, provide the ultimate security you can trust. Choose the best in Anti-vehicle Road barriers and barricades with A1 Alcazar.
Experience
2 decades of experience in the perimeter security domain.
Solutions Design
We help in designing a complete solution package by understanding the security threats at site and selecting suitable combination of products and integrating all of them
Manufacturing & Coating Expertise
We have a local manufacturing plant in Saudi Arabia and 4 manufacturing facilities in India & 2 abroad, we boast a manufacturing capacity of 60,000 metric tons per annum and our state of the art coating setup is capable of producing superior quality coatings like PPC, PVC or TPC.
Installation Support
We have a dedicated team for complete end - to - end installation & AMC support for maintaining the various systems by a strong network of partners and inhouse supervisors, trainers and support team
Application Areas
Enhance security at government facilities with our advanced Rope Barrier System, creating an impenetrable line of defense to mitigate hostile vehicle threats
Safeguard water desalination plants effectively using our innovative Rope Barrier System, establishing a secure perimeter to counter hostile vehicle risk
Secure thermal power plants comprehensively with our cutting-edge Rope Barrier System, providing robust hostile vehicle mitigation for critical infrastructure
Reinforce security measures at government facilities using our state-of-the-art Rope Barrier System, ensuring effective hostile vehicle mitigation and safeguarding critical premises
Empower military establishments with our advanced Rope Barrier System, delivering a resilient hostile vehicle mitigation solution to bolster overall security
Elevate security at seaports and airports through our innovative Rope Barrier System, providing a robust hostile vehicle mitigation solution to safeguard vital transportation hubs
